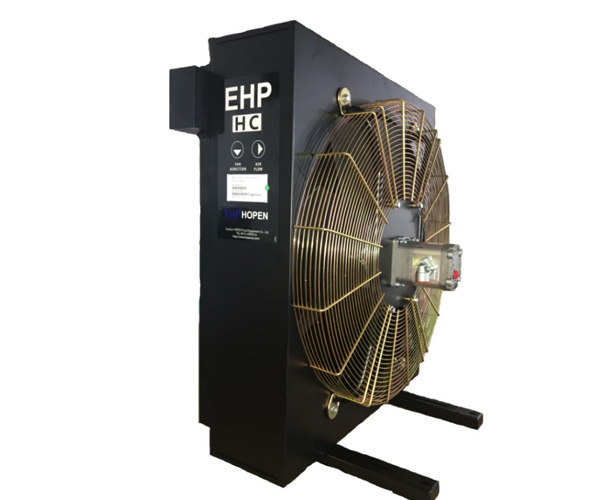

Air Oil Cooler With Hydraulic Motor

Air Oil Cooler With Hydraulic Motor


Product Detail

Product Tags

Application:
EHP-HC cooler drive by Hydraulic motor ,it is mainly used in the cooling of mobile、hydraulic system 、marine drilling platform、wind power generation、coal mine etc. Aluminum cooler ‘s maximum cooling capacity is 160KW at ETD 40℃。 Our software and engineers can help you to choose the correct and economical cooler.
截图20220118094230
Products Features:
Ac motor cooler’s maximum dynamic operating pressure is 14bar and maximum static operating pressure is 21bar.The cooler is drive by hydraulic motor . The motor size: 8.25CC/rev、10.12CC/rev、13.8CC/rev、 15.52CC/rev、19.12CC/rev、22.87CC/rev 40CC/rev

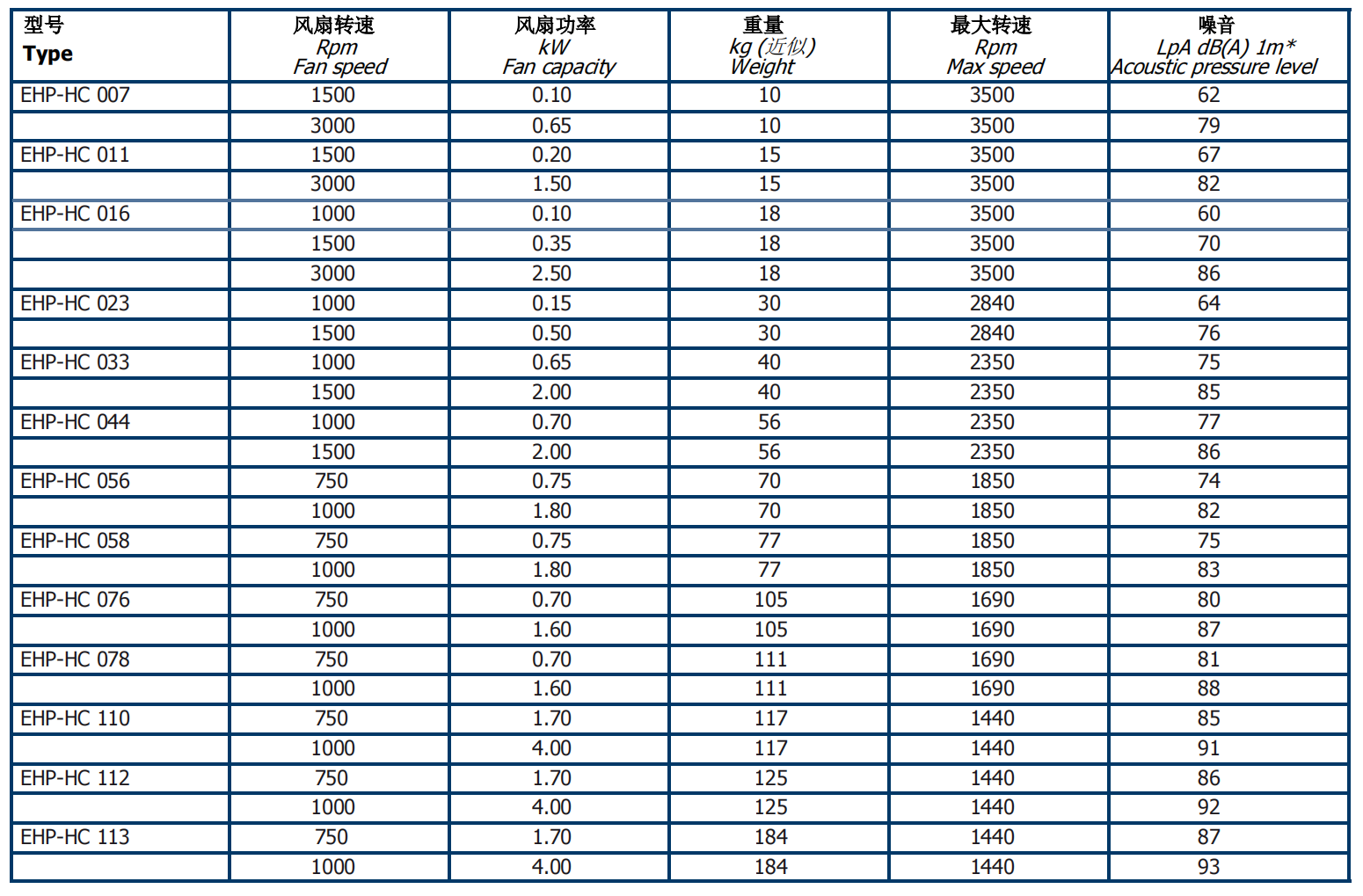

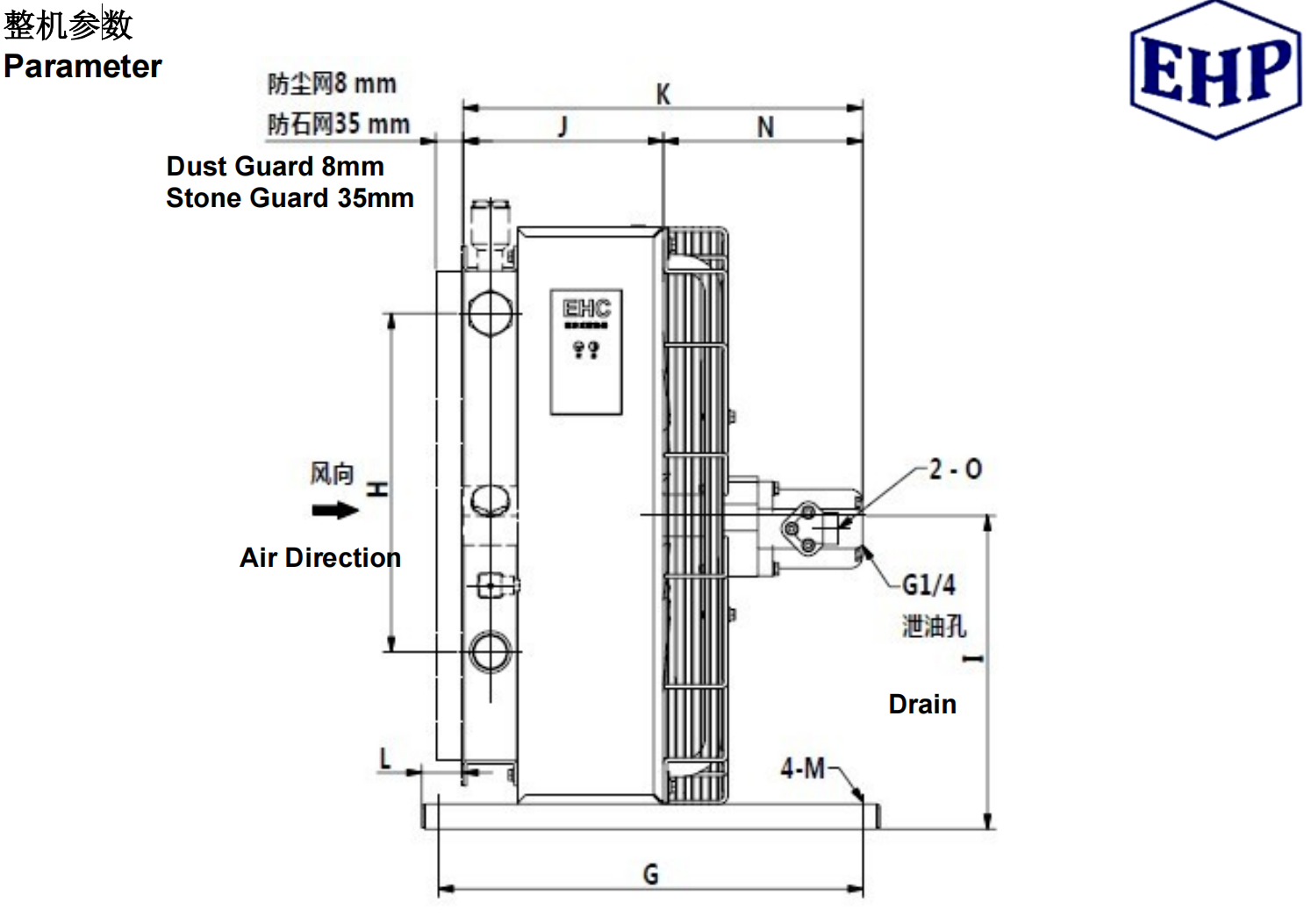

Parameter
截图20220118094406
截图20220118094416

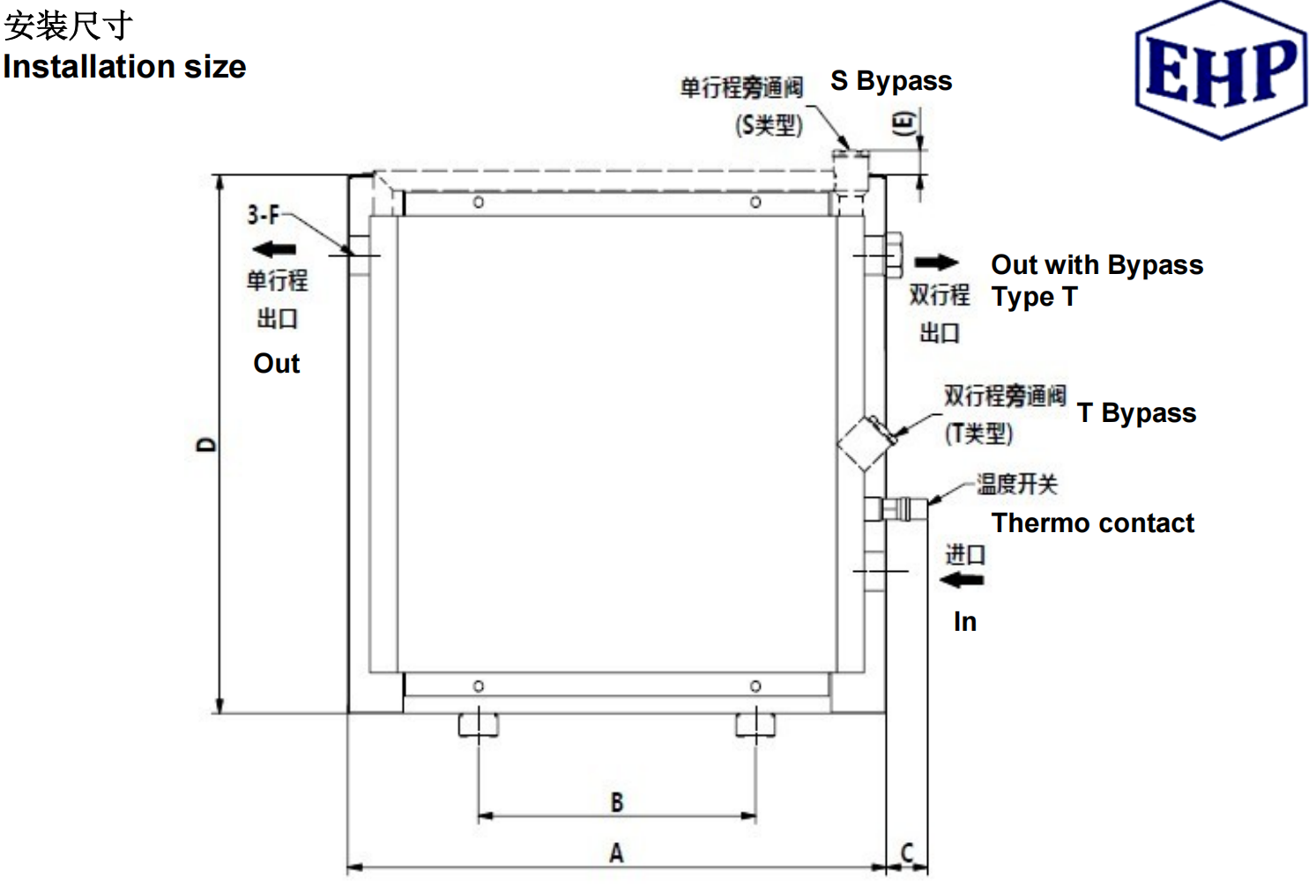

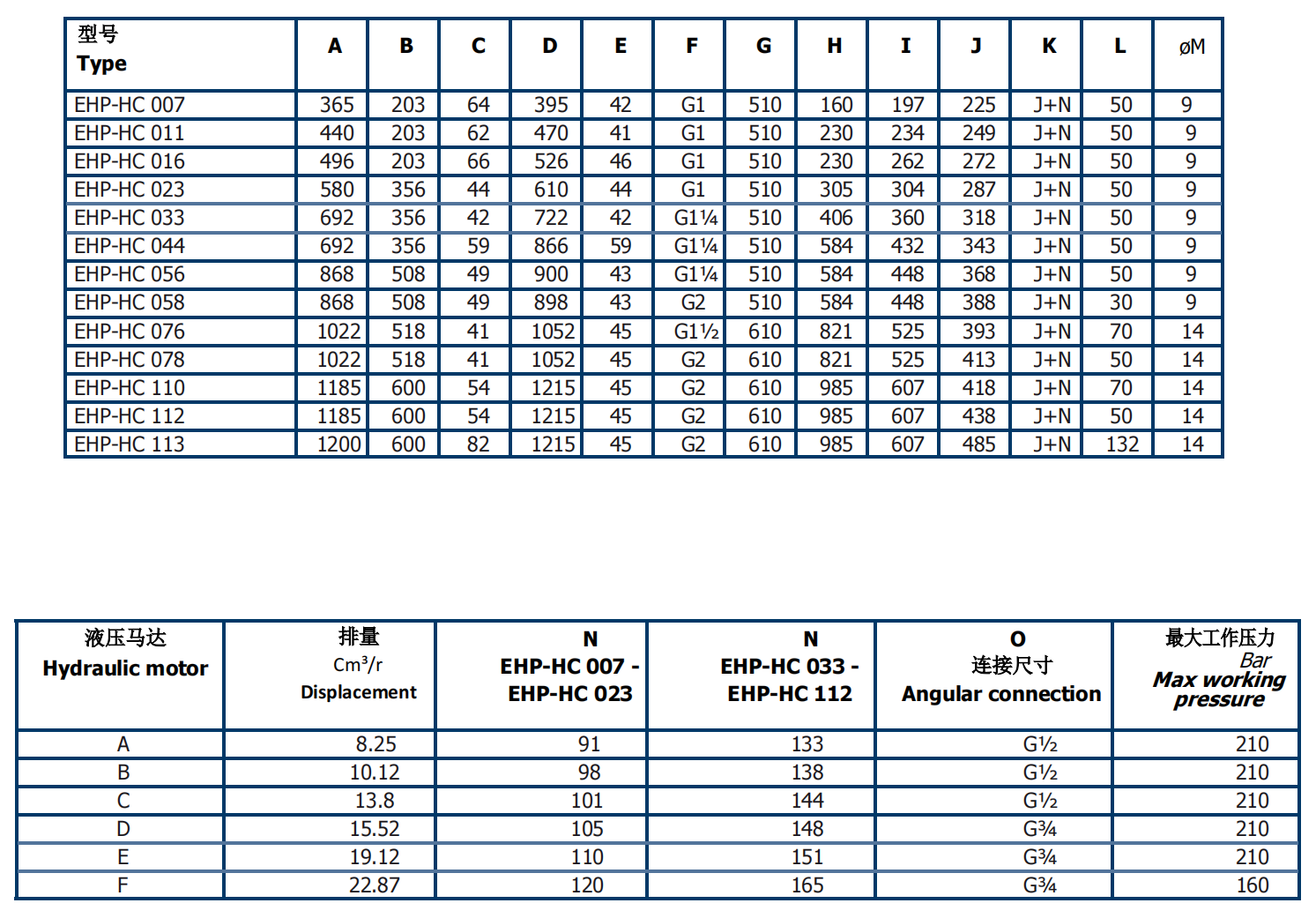

Installation size
截图20220118094507
截图20220118094521

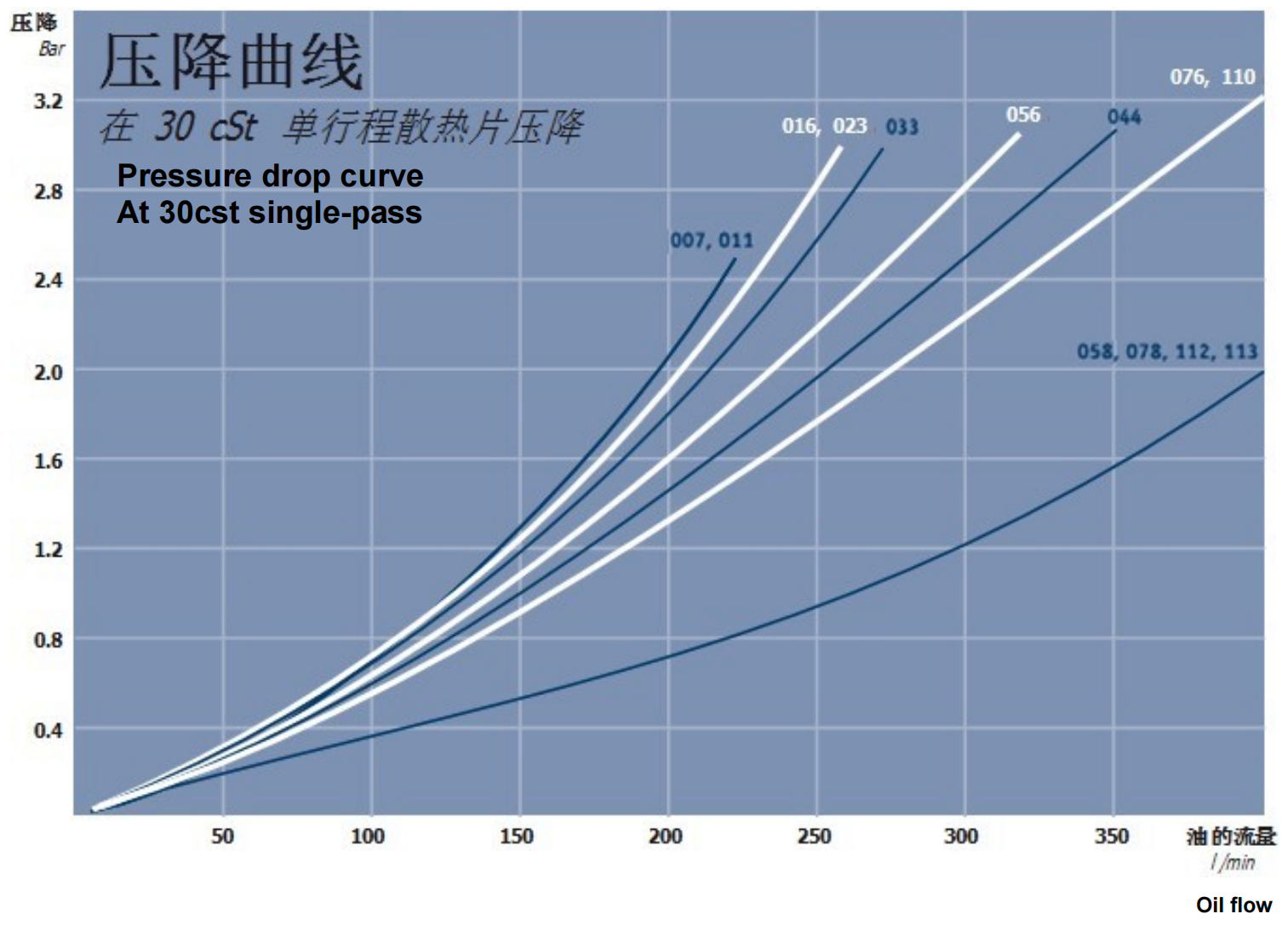

Pressure drop curve
The cooling capacity curves are base on ETD 40℃.For example,the cooler‘s inlet oil temperature is 60℃,the air temperature is 20℃,the ETD is 40℃。
Pressure drop
截图20220118094716
Performance curve
截图20220118094716
